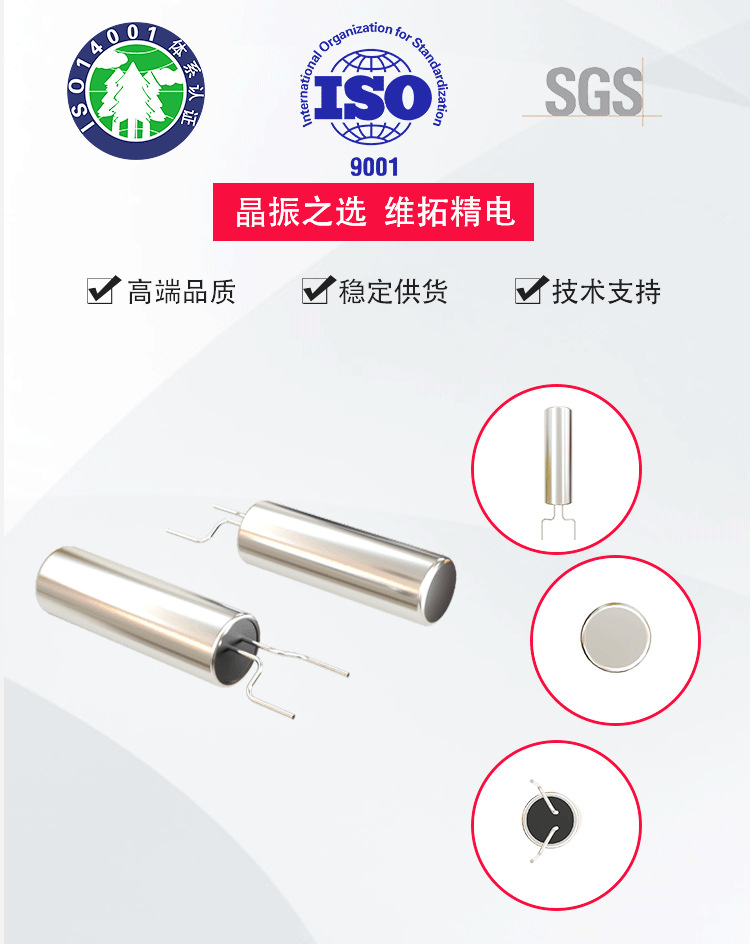

WTL維拓音叉晶體2*6 6/12.5pF32.768kHz收音機表晶青蛙腳圓柱音叉
品牌：WTL 系列：WX8 封裝：2*6mm SMD 頻率：32.768kHz 負載電容：12.5pF/6pF/12.5pF 調整頻差：±10ppm/±20ppm/±20ppm 工作溫度：-20~+70℃/-40~+85℃/-40~+85℃ 標價：0.71/0.71/0.71
分享到
產品介紹
Frequency Range (kHz) | 30~40 | 40~60 | 60~70 | 70~200 | 200~350 |
Load Capacitance (CL) | 6~12.5pF,or specify | ||||
Frequency Tolerance( at 25°C ) | ±5ppm ~ ±100ppm | ||||
Operating Temperature Range | -20~+70°C or specify | ||||
Turnover Temperature | 25 ± 5°C | ||||
Frequency Temperature Curve | (-0.035±10%) x 10-6/°C2 | ||||
Equivalent Series Resistance (ESR) Max. | 40kΩ | 30kΩ | 25kΩ | 22kΩ | 20kΩ |
Driver Level (Typical) | 0.1μW | ||||
Driver Level(Max) | 1μW | ||||
Shunt Capacitance ( C 0 ) | 1.45 pF Typ. | ||||
Insulation Resistance | More than 500Mohms at DC100V | ||||
